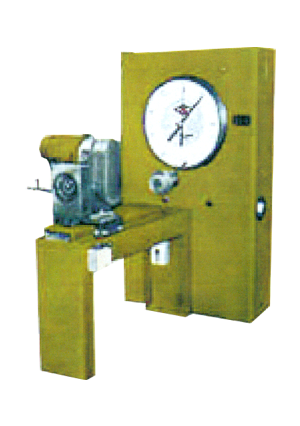

ALE TORSION TESTING MACHINES



FEATURES :

Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials. Torque measurement is by pendulum dyanometer system. Torque ranges can be adjusted by auto torque selector. Torque can be applied to I specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist.

The accuracy of torque indication is ± of the true torque.

Technical Data :

Models
Unit
T-6
TT-10
TT-20
TT-50
TT-100
TT-200
TT-300
Max. torque
capacity
Nm
60
100
200
500
1000
2000
3000
Torque Ranges
Nm
60,30
100,50,
20
200,100,
50
500,250,
100,50
1000,500,
250,100
2000,1000
500, 200
3000,1500
600,300
No. No. of Div. on Dial
Nos
600
500
500
500
500
500
600
Torsion Speed
RPM
1.5
1.5
1.5
0.5
0.5
0.5
0.5
Clearance between Grips
mm
0-420
0-420
0-420
0-500
0-600
0-1000
0-1000
Grips for Round specimens
Grips for flat
mm
4-8
8-12
4-8
8-12
7-10
10-15
15-20
10-17
17-24
24-30
10-18
18-26
26-34
20-30
30-40
40-50
30-40
40-50
50-60
Specimens width
mm
1-5
25
2-8
25
25
3-10
30
30
5-12
40
40
5-15
50
50
10-20
60
60
15-25
60
60
Motor
(400-440 V,3 Phase & 50 Hz.)
HP
0.5
0 .5
0.5
0.5
1.0
1.0
1.5

AlE reserves the rights of change in above specification due to constant improvements in design.
