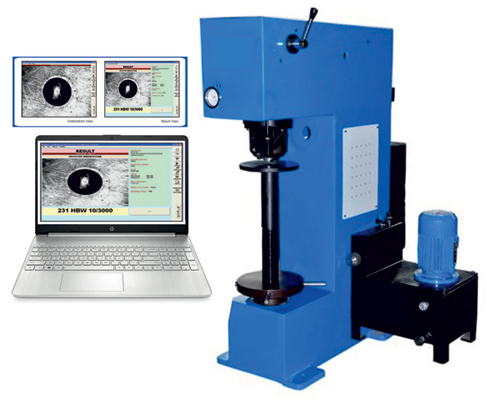

COMPUTERISED BRINELL HARDNESS TESTERS - AIE-B3000(PC)

We are Manufacturer, Supplier, Exporter of Computerised Brinell Hardness Testers, Computerised Brinell Hardness Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.

c-brinell-hardness2
c-brinell-hardness1

Request A Quote

Available Models :

This model is available in 3 models.

  • Regular Computerised Machine.
  • Semi-automatic operation.
  • Fully Automatic Machine means loading I unloading and results will get automatically.
Specification :

The range of Measurement is from lmm to 6 mm of diameter with Resolution of 0.01 mm.

The software includes :
  • Facility for Auto /semi Auto / Manual modes of operation.
  • Well managed database saves readings W.R.T. batch.
  • Facility for calibration and check of calibration.
Application :
  • To measure Brinell Hardness directly on machine where presently Brinell-Microscope is used. This avoids eye straining of operator on producing testing. In addition it gives far better repeated accuracy. High-low limits selections enables operator easy cceptance / rejection of components.
  • Can be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy setup.
Scope of Supply :
  • Machine containing CCD Camera, optics and illumination systems with connecting cable.
  • External Video capture with USB 2 connectivity and driver software.
  • Brinellimpression Measurement System (B.I.M.S.) software.
  • PC or LAPTOP and windows XP operating systems is to be procured by customer.
  • One USB 2.0 and one RS232 (serial) interface (9 pin) is required and it is recommended for Laptop to use external USB to converter for RS232 interface.

SPECIFICATIONS
UNIT
AIE-B3000 (PC)
Loads
kg.
500 to 3000 in stage 250
Initial Load
kgf.
Nil
Max. Testing Height
mm
380
Depth of Throat
mm
200
Max. Depth of elevating screw below base
mm
180
Size of Base
mm
370 X 670
Machine Height
mm
1185
Net Weight (Approx.)
kg.
500
Drive Motor
HP
0.33 - 415 v/p
Calibration Facility :

The systems includes calibration and check facilities to calibrate the systems and for checking of calibration. This eliminates any system error in measurement.

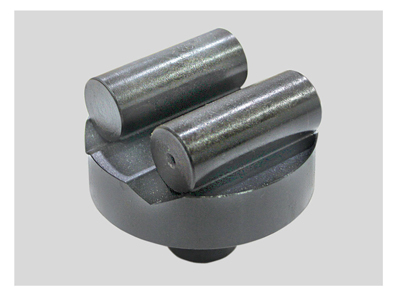

cylindron-anvil

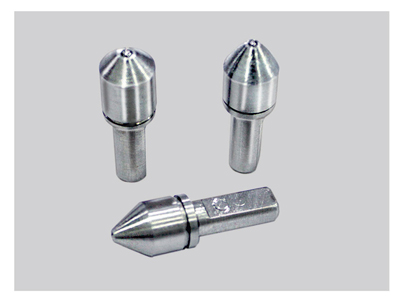

indentor

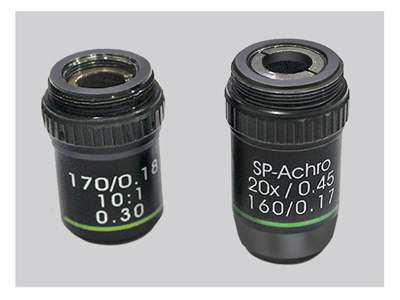

objective-10x-20x-for-vickers-hardness-tester

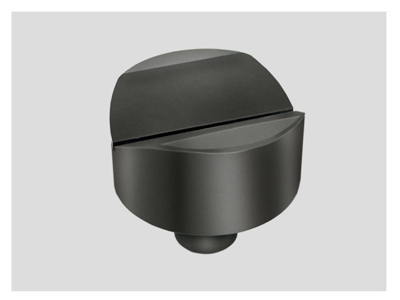

v-table
