IMPACT TESTING MACHINES (ASTM)

We are Manufacturer, Supplier, Exporter of ASTM Charpy Impact Testing Machine, Astm Impact Testing Machines, Impact Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.

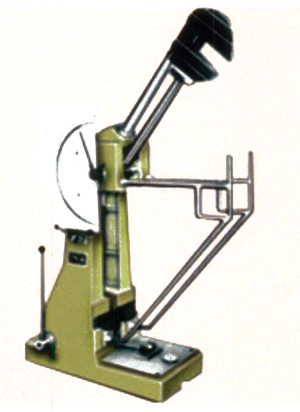

MODEL : AIE-IT-30 (ASTM)

The Impact Tester offered with 300 J energy exclusively for Charpy test confirming to ASTMK-23. This machine geometrically checked in the works to the more stringent requirements of the American standard. The accuracy of the machine is then verified by PROOF TEST by testing standard test specimens supplied by the NIST, USA. Two sets (Low high energy-1 Set (4 Nos.) each.) must agree with the normal values within certain tolerance specified.

impact-testing-machine-astm


MODEL

AIE-IT-30

AIE-IT-30(D)

AIE-IT-30 (ASTM)
Charpy Test

AIE-IT-1.5

AIE-IT-1.5

Maximum Capacity

300 J/168 J

300 J/170 J

300 J

15 J

15 J

Maximum Scale Graduation

2 J

0.5 J

2 J

0.1 J

0.05 J

Overall Size (Approx.)

1.1m*0.45m*1.65m (H)

1.32m*0.45m*1.05m (H)

1.4m*0.5m*1.9m (H)

0.5m*0.3m*0.52m (H)

0.5m*0.3m*0.52m (H)

Net Weight (Approx.)

375 kg.

375 kg.

450 kg.

70 kg.

70 kg.


AIE reserves the right to change the specifications without notice due to constant improvement in design.

OPTIONAL ACCESSORIES V notch for Izod & Charpy.

  • Caliper gauge checking V notch for lzod and Charpy.
  • Templates for checking 10x1Omm. cross section of Izod/Charpy test specimen.
  • Depth notch gauge including V and U notch gauges for checking depth below V/U notch, angle and radius.
  • Izod support for 0.450" dia Izod round specimen.
  • Self centering tong for quick and accurate setting of Charpy test specimen.
  • 'V' notch milling cutter.
  • 'U' notch milling cutter.
