WHEEL BALANCING MACHINES

We are Manufacturer, Supplier, Exporter of Wheel Balancing Machine, Wheel Balancer, Automatic Wheel Balancing Machine, Automatic Wheel Balancer. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries. Wheel Balancer with built in Microprocessor and Automatic cycle operation
Features :

  • Simultaneous indication of unbalance g/oz
  • D.C. braking at end of cycle.
  • Data feeding through numeric keys.
  • Facility for static balancing and fine mode.
  • Quick lock nut for faster action.
  • Horizontal spindle simulates actual case.
  • Self calibration program.
  • Optimisation program.
  • Error code indication.
  • program for Alluminium alloys Rims.

wheel-balancer

Standard Accessories :

Tapered Cone Big

Tapered Cone Big

Tapered Cone Small

Tapered Cone Small

Wheel Flange With Stud

Wheel Flange With Stud

Quick Lock Nut

Quick Lock Nut

calliper

Calliper

Weight Pleirs

Weight Pleirs

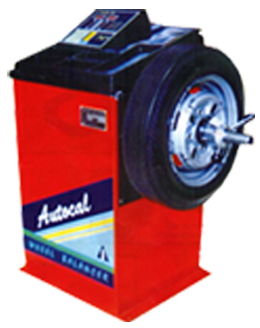

Wheel Balancer

Wheel Balancer



Technical Specification :
Capacity

  Rim dia
Rim width
Wheel weight
 10" (250) to 24" (600 mm)
1.5" (40mm) to 20" (510mm)
65 kg ( including adapter )
  Measuring range

 0 - 150 g
  Unbalance indication
- amount
- position
 5 g normal / 1 g fine
+ 1.8 degree with LED
  Balancing speed (approx)

 220 rpm
  Power Supply

 220V AC 50 Cycle 500W
  Machine dimensions (approx)

 525 mm x 760 mm x 920 mm (H)
  Machine weight (approx)

 85 kg (without accessories)
